PRODUCT DESCRIPTION

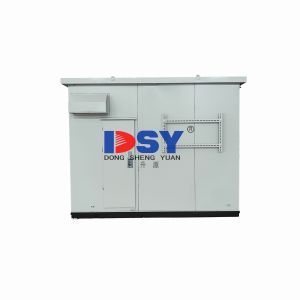

The YBW series prefabricated substation is a combination of high-voltage electrical equipment, a transformer, low-voltage electrical equipment, etc., into a compact, complete power distribution device, used in urban high-rise buildings. Urban and rural buildings, residential areas, high-tech development zones, and small and medium-sized factories. Mining oil fields and temporary construction, and electricity use. etc., for the distribution and distribution of electrical energy in the distribution system
The YBW series prefabricated substation has the characteristics of a strong set. Small size.compact structure. Sate and reliable operation, convenient maintenance, and movable. Compared with a conventional civil substation, the same capacity box-type substation usually covers an area. Lt is only 1/10-1/5 of the conventional substation, which greatly reduces the design workload and construction volume and reduces the construction cost. In the power distribution system, the thousand-ring network power distribution system can also be used, or the thousand-double power source or the radiation terminal power distribution system can be used. It is a new type of equipment for the construction and improvement of urban and rural substations.
YBW series prefabricated substation meets the national standard of GB/T17467-1998 "High Voltage / Low Voltage Prefabricated Substation"
ENVIRONMENTAL CONDITIONS
1. ambient air temperature: upper limit ≤ 40 ºC, lower limit ≥-10 ºC.
2. sunlight radiation < 1000W / m2
3. Altitude ≤ 1000m
4. lce coating ≤ 20mm
5. wind speed < 35m/s
6. Humidity: Daily average relative humidity: 595%; Monthly average relative humidity ≤ 90%; Daily average relative water vapor pressure ≤ 2.2kPa; Monthly average relative water vapor pressure ≤ 1.8kPa
7. Earthquake intensity ≤ 8 degrees
8. Locations free from fire, explosion hazard, severe contamination, chemical corrosion, and severe vibration. Note: Special-use conditions, when ordering,regotiate with the manufacturer.THE TECHNICAL PARAMETERS
| NAME |
Uint |
High Voltage Electrical Equipment |
Transformer |
Low Voltage Electrical Equipment |
| Rated Voltage |
KV |
10 |
10/0.4 |
0.4 |
| Rated Current |
A |
630 |
|
100~2500 |
| Rated Frequency |
Hz |
50 |
50 |
50 |
| Rated Capacity |
KVA |
|
100~1250 |
|
| Rated Thermal Stability Current |
KA |
20/45 |
|
30/15 |
| Rated Dynamic Current (peak) |
KA |
50 |
|
63 |
| Rated Short Circuit Current |
KA |
50 |
|
15~30 |
| (peak) |
| Rated Breaking Short-circuit Current |
KA |
31.5 |
|
|
| Rated Breaking Load Current |
A |
630 |
|
|
| 1min Power Frequency Withstand Voltage |
KV |
to earth, between poles 42 |
35/28(5mln) |
2.0/2.5 |
| Lighting Impulse Withstand Voltage |
KV |
to earth, between poles75 |
75 |
|
| Shell Protection Grade |
|
IP33D |
| IP22D(Shell Of Transformer) |
| Noise Level |
dB |
|
s55(Oil Transformer) |
|
| s65(Dry Transformer) |
| Number of Loops |
|
1~6 |
2 |
4~30 |
| Maximum Reactive Power Compensation on the Low Voltage Side |
Kvar |
|
|
300 |
NOTICE!Please tell us the information before ordering. The information includes:
1. Prefabricated substation type;
2. Transformer model and capacity;
3. High and low voltage circuit main wiring scheme;
4. Types and parameters of electrical components with special requirements;
5. Shell Color;
6. Names, quantities, and other requirements of spare parts and spare parts;
